Generator sch - Elektrisk udstyr - Volvo Amazon B18
Hold musen over for at forstørre, klik på tegningen for fuld skærm

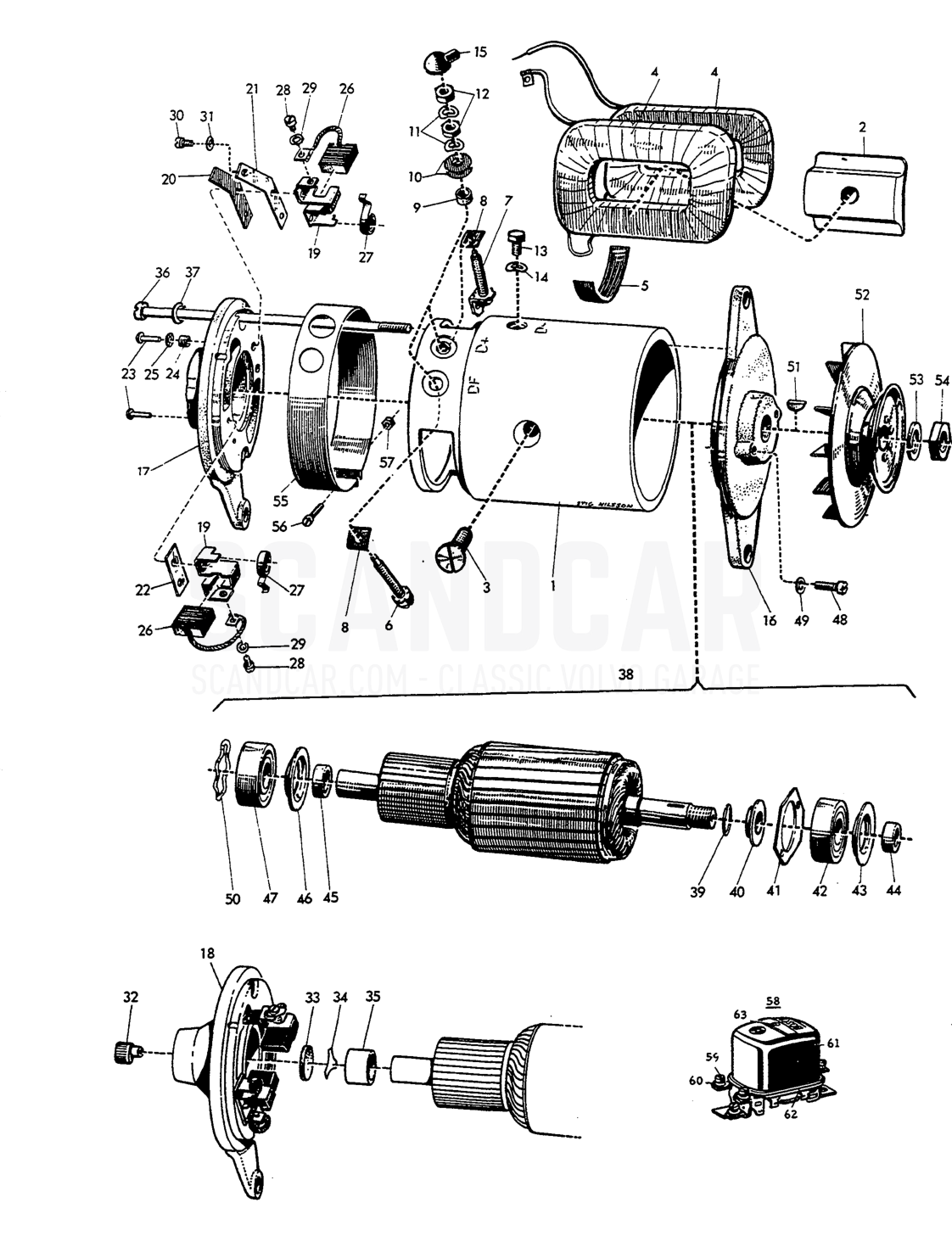

Generator sch
Volvo Amazon B18 · Elektrisk udstyr
| # | Del | Pris | Antal | |
|---|---|---|---|---|
|
Likströmsgenerator Generator
238751
LJ/GG 240/12
|
1× | |||
| 3 |
Skruv Screw
190888
NSR 5576/22 2 910 551 284
|
2× | ||
|
(red)
240561
LJWC 16 1 104 103 024
|
1× | |||
|
(blue)
240562
LJWC 16 1 104 103 025
|
1× | |||
| 6 |
screw DF
238866
WSR 75 1 103 454 006
|
1× | ||
| 7 |
D+
238790
LJEA 19 1 101 332 009
|
1× | ||
| 8 |
plate
238791
LJPT 7 1 101 031 013
|
2× | ||
| 9 |
bushing
238792
WNB 410/3 1 000 307 010
|
2× | ||
| 10 |
washer
238805
NNS 27/15 1 900 112 307
|
4× | ||
| 11 |
Volvo Fjederring 1/4 tommer 6 5X11 5X1 6 ring Volvo varenummer 955920
955920
NMS 727/7 2 91b ObO OOb
|
4,41 kr. | 4× | |
| 12 |
Volvo Møtrik 3/16 inklusive gasspjældsstang 140 145 164 Amazon 121 Amazon 122 S Amazon 220 C202 C303 P1800 P1800 EP 1800 ES P 210 Duett PV444 P445 DUETT PV544 Volvo varenummer 955780
955780
NMU 42/2 2 915 012 OOb
|
4,48 kr. | 4× | |
| 14 |
Volvo Fjederring 1/4 tommer 6 5X11 5X1 6 ring Volvo varenummer 955920
955920
NMS 727/7 2 91b ObO 006
|
4,41 kr. | 1× | |
| 15 |
cap
70614
WNK 500/4 3 130 558 000
|
2× | ||
| 10 |
end bearing
238793
LJLG 42 1 105 823 020
|
1× | ||
| 17 |
end bearing
238794
LJLG 41 853 181
|
1× | ||
| 18 |
end bearing
239304
LJLG 43 1 105 853 173
|
1× | ||
| 19 |
holder
238795
LJSA 8 1 101 323 070
|
2× | ||
| 20 |
plate
238796
LJPT 19 1 101 022 002
|
1× | ||
| 21 |
plate
238797
LJPT 18 1 101 021 005
|
1× | ||
| 22 |
plate
238799
LJPT 18 1 101 021 OOb
|
1× | ||
| 23 |
Rivet
238798
WNJ 18 1 103 132 005
|
4× | ||
| 24 |
bushing
77511
WNB 578/106 308 006
|
2× | ||
| 25 |
washer
48492
NNS 101/4 112 203
|
2× | ||
| 2b |
Volvo Kulbørstesæt Dynamo 12 Volt Bosch DC Volvo varenummer 273500
273500
1 107 014 141 1 107 014 141
|
126,53 kr. | 1× | |
| 27 |
Volvo Fjeder til kulbørste DC-generator og startmotor Bosch WSF40L4 1 104 652 005 6 volt + 12 volt Volvo varenummer 238801
238801
WSF 40 005
|
91,63 kr. | 2× | |
| 28 |
Skruv Screw
956058
NSR 5262/7 2 910 021 115
|
2× | ||
|
Volvo Spring Revet Volvo varenr. 955917
955917
NMS 440/3 2 91b 690 003
|
5,75 kr. | 2× | ||
| 31 |
Volvo Spring Revet Volvo varenr. 955917
955917
NMS 440/3 2 91b 690 003
|
5,75 kr. | 1× | |
|
Smörjkopp Lubricator
35028
WOL 1/1 1 237 400 010
|
1× | |||
|
Platta Plate
238580
LJPT 22 L 100 098 000
|
1× | |||
|
bush
238579
WMB 50 1 100 301 001
|
1× | |||
| 3b |
Skruv Screw
190721
WSR 30 L 2b 1 103 410 008
|
2× | ||
| 38 |
Rotor
238804
LJAN 21 1 104 013 943
|
1× | ||
|
Rotor
239305
LJAN 21 1 104 013 939
|
1× | |||
|
ring
238806
LJMS 4 1 100 120 023
|
1× | |||
|
disc
238807
LJPT 24 1 100 551 040
|
1× |
